水冷板
水冷板

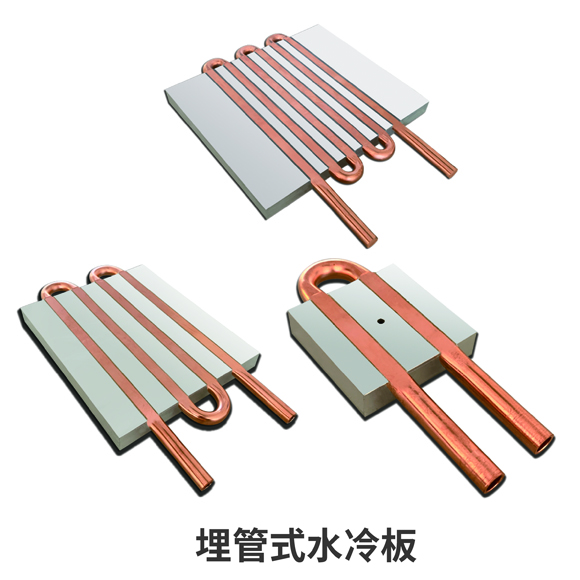

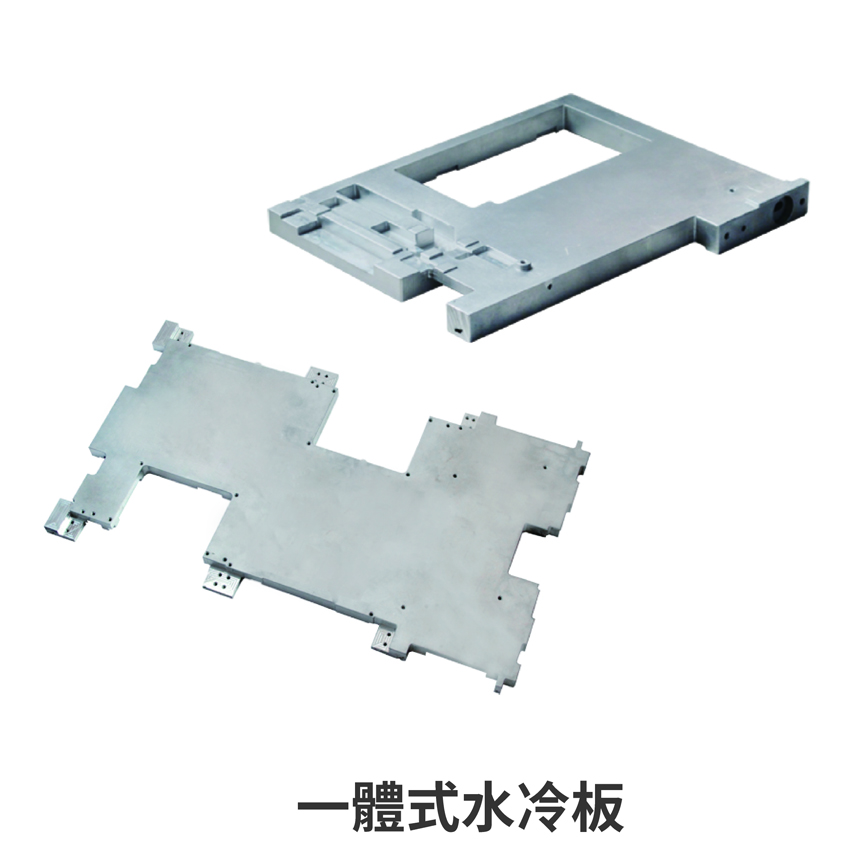

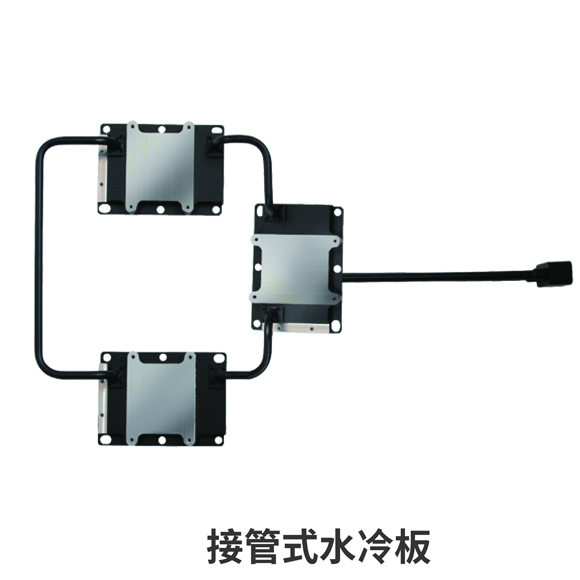

建準提供各種不同款式的水冷板，包含一體式冷板、接管式水冷板、埋管式水冷板，水冷板能帶來更佳的效能並有效解決客戶系統的熱。
建準冷板最薄可提供3mm的客製化設計，各種特殊的冷板設計在通訊、超級電腦、伺服器等產業與客戶有合作經驗，並持續發展更好的水冷板產品，提供個多樣的選擇。
CM036-20001N Liquid Cold Plate (2 Pass)
SUNON introduces brand-new High-efficiency Tubed Liquid Cold Plate products. These tubed cold plates are manufactured by using copper tubes firmly embedded into an aluminum base, adopting riveting skills to improve cooling effectiveness. SUNON offers a range of the liquid tubed cold plates for our clients’ needs which can be applied in various industries and applications such as 5G and Inverter Drive to solve thermal problems.
| SUNON P/N | : | CM036-20001N |
| *TDP (W) | : | up to 500W |
| Base Material | : | AL1050 57.2x57.2x14mm |
| Tube Material | : | Copper (C1100) 9.5mm O.D x 7.02 mm I.D |
| Dimensions (mm) | : | Plate Length : 133.4 (mm) Plate Width : 57.2(mm) Plate Thickness : 14(mm) |
| Weight (g) | : | 180g |
* TDP=Thermal Power
*Mass production: December, 2021
CM036-20002N Liquid Cold Plate (4 Pass)
SUNON introduces brand-new High-efficiency Tubed Liquid Cold Plate products. These tubed cold plates are manufactured by using copper tubes firmly embedded into an aluminum base, adopting riveting skills to improve cooling effectiveness. SUNON offers a range of the liquid tubed cold plates for our clients’ needs which can be applied in various industries and applications such as 5G and Inverter Drive to solve thermal problems.
| SUNON P/N | : | CM036-20002N |
| *TDP (W) | : | up to 1000W |
| Base Material | : | AL1050 152.4x127x15.2 mm |
| Tube Material | : | Copper (C1100) 9.5mm O.D x 7.02 mm I.D |
| Dimensions (mm) | : | Plate Length : 228 (mm) Plate Width : 127(mm) Plate Thickness :15.2(mm) |
| Weight (g) | : | 940g |
* TDP=Thermal Power
*Mass production: December, 2021
CM036-20003N Liquid Cold Plate (6 Pass)
SUNON introduces brand-new High-efficiency Tubed Liquid Cold Plate products. These tubed cold plates are manufactured by using copper tubes firmly embedded into an aluminum base, adopting riveting skills to improve cooling effectiveness. SUNON offers a range of the liquid tubed cold plates for our clients’ needs which can be applied in various industries and applications such as 5G and Inverter Drive to solve thermal problems.
| SUNON P/N | : | CM036-20003N |
| *TDP (W) | : | up to 1000W |
| Base Material | : | AL1050 177.8x172.5x14mm |
| Tube Material | : | Copper (C1100) 9.5mm O.D x 7.02 mm I.D |
| Dimensions (mm) | : | Plate Length : 233.4 (mm) Plate Width : 177.8(mm) Plate Thickness : 14(mm) |
| Weight (g) | : | 1230g |
* TDP=Thermal Power
*Mass production: December, 2021
