Cold Plate
Cold Plate

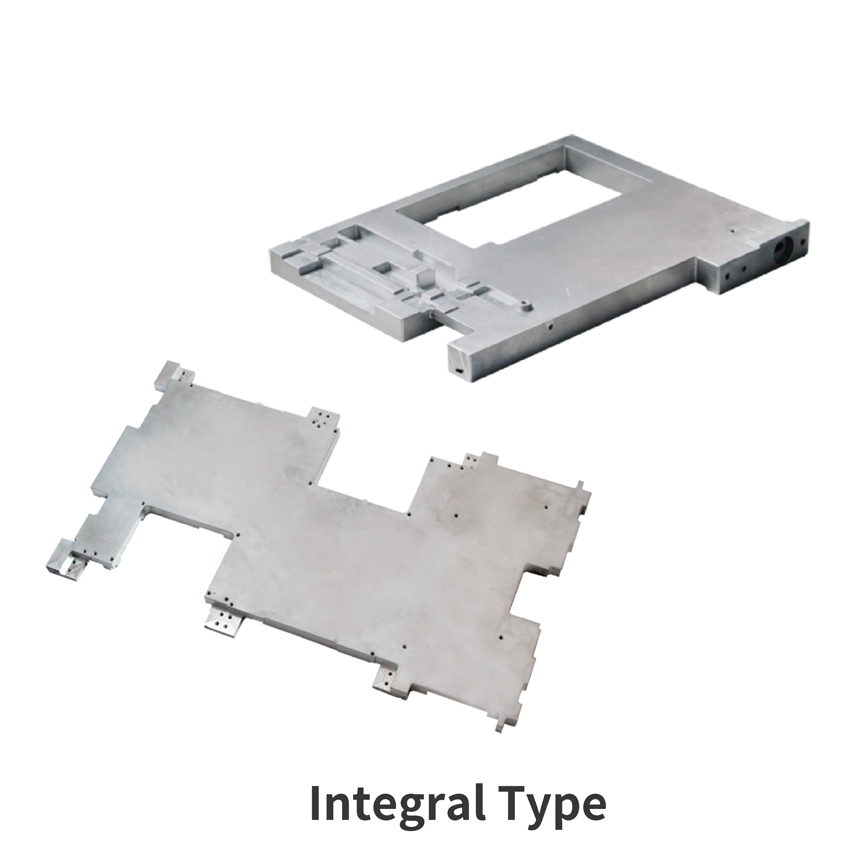

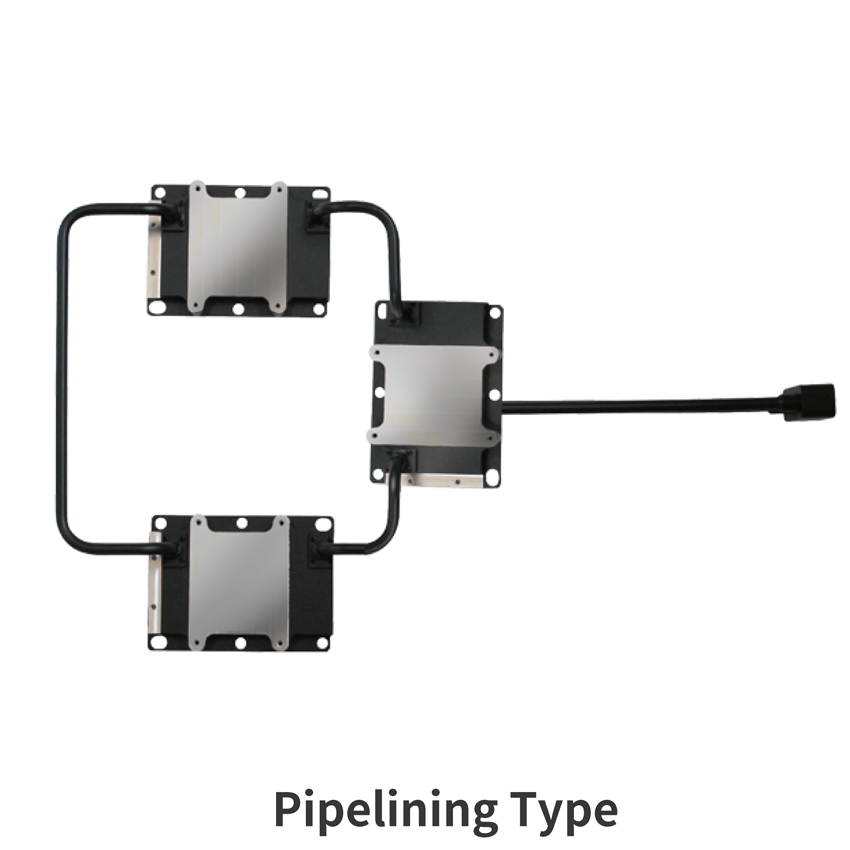

SUNON’s variety of custom-designed cold plates includes pipelining cold plates, integral cold plates and tubed cold plates. The thinnest cold plate can be as thin as 3mm at the customer’s request. Cold plates can effectively solve the system thermal problems leading to an enhancement of operating performance.
Sunon has the experience cooperating with customers across different industries such as communication, super-computing, and server systems. As a leading thermal product manufacturer, we strive to develop better liquid cooled products and expand diversity in our offerings.

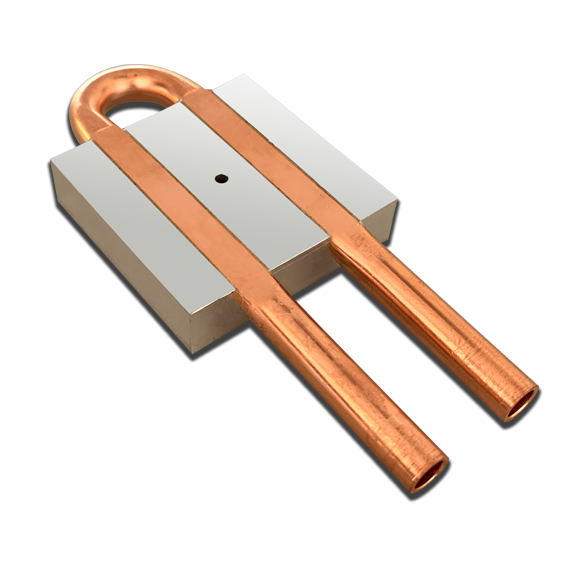

CM036-20001N Liquid Cold Plate (2 Pass)

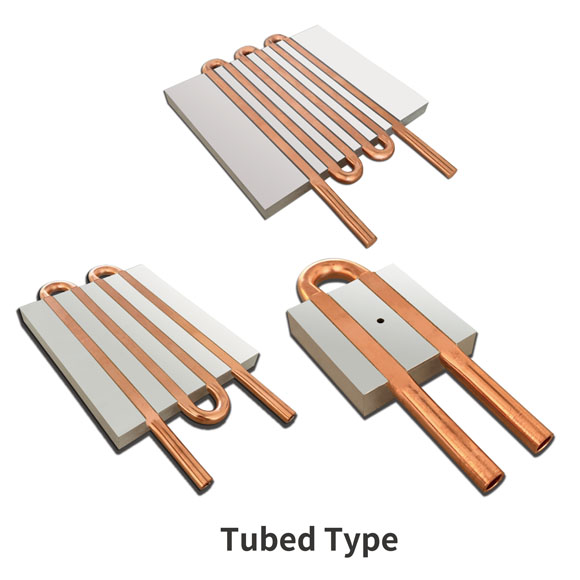

SUNON introduces brand-new High-efficiency Tubed Liquid Cold Plate products. These tubed cold plates are manufactured by using copper tubes firmly embedded into an aluminum base, adopting riveting skills to improve cooling effectiveness. SUNON offers a range of the liquid tubed cold plates for our clients’ needs which can be applied in various industries and applications such as 5G and Inverter Drive to solve thermal problems.
| SUNON P/N | : | CM036-20001N |
| *TDP (W) | : | up to 500W |
| Base Material | : | AL1050 57.2x57.2x14mm |
| Tube Material | : | Copper (C1100) 9.5mm O.D x 7.02 mm I.D |
| Dimensions (mm) | : | Plate Length : 133.4 (mm) Plate Width : 57.2(mm) Plate Thickness : 14(mm) |
| Weight (g) | : | 180g |
* TDP=Thermal Power
*Mass production: December, 2021
CM036-20002N Liquid Cold Plate (4 Pass)
SUNON introduces brand-new High-efficiency Tubed Liquid Cold Plate products. These tubed cold plates are manufactured by using copper tubes firmly embedded into an aluminum base, adopting riveting skills to improve cooling effectiveness. SUNON offers a range of the liquid tubed cold plates for our clients’ needs which can be applied in various industries and applications such as 5G and Inverter Drive to solve thermal problems.
| SUNON P/N | : | CM036-20002N |
| *TDP (W) | : | up to 1000W |
| Base Material | : | AL1050 152.4x127x15.2 mm |
| Tube Material | : | Copper (C1100) 9.5mm O.D x 7.02 mm I.D |
| Dimensions (mm) | : | Plate Length : 228 (mm) Plate Width : 127(mm) Plate Thickness :15.2(mm) |
| Weight (g) | : | 940g |
* TDP=Thermal Power
*Mass production: December, 2021

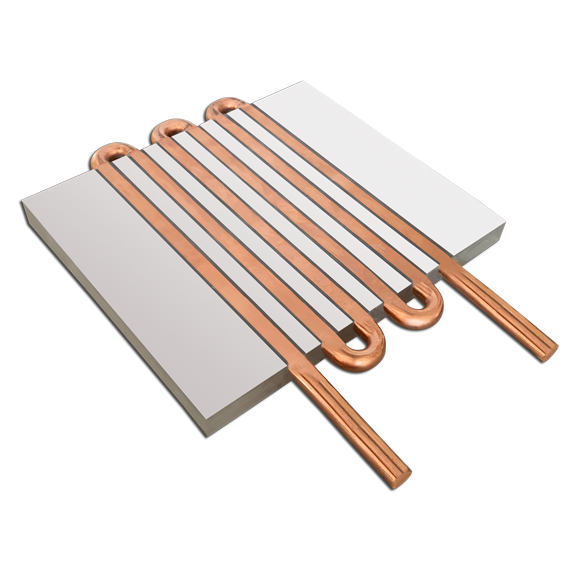

CM036-20003N Liquid Cold Plate (6 Pass)
SUNON introduces brand-new High-efficiency Tubed Liquid Cold Plate products. These tubed cold plates are manufactured by using copper tubes firmly embedded into an aluminum base, adopting riveting skills to improve cooling effectiveness. SUNON offers a range of the liquid tubed cold plates for our clients’ needs which can be applied in various industries and applications such as 5G and Inverter Drive to solve thermal problems.
| SUNON P/N | : | CM036-20003N |
| *TDP (W) | : | up to 1000W |
| Base Material | : | AL1050 177.8x172.5x14mm |
| Tube Material | : | Copper (C1100) 9.5mm O.D x 7.02 mm I.D |
| Dimensions (mm) | : | Plate Length : 233.4 (mm) Plate Width : 177.8(mm) Plate Thickness : 14(mm) |
| Weight (g) | : | 1230g |
* TDP=Thermal Power
*Mass production: December, 2021
